Rapidly produce parts in volume through the multidisciplinary architecture of Authoritative Manufacturing Solutions.
Xavier’s CNC machining is different from traditional manufacturing. Our process is fully automated—from CAD analysis to automated toolpaths and digital inspections—and incredibly fast. This automation allows us to increase the speed of production of high-volume parts.
We can provide instant quotes for over 50 types of metal and plastic machining, suitable for CNC machining of a wide variety of metals, for applications in a variety of industries. Ideal for one-off prototypes and end-use custom parts.
High machinability and ductility, good strength-to-weight ratio. Aluminum alloys have good strength-to-weight ratio, high thermal and electrical conductivity, low density and natural corrosion resistance. Can be anodized.
High tensile strength, corrosion and temperature resistant. Stainless steel alloys have high strength, ductility, wear and corrosion resistance. They can be easily welded, machined and polished.
High machinability and weldability, high stiffness. Mild steels are low-carbon metal alloys offering good mechanical properties, machinability and weldability at low cost. Can be carburized to increased hardness.
Excellent thermal and electrical conductivity Copper offers excellent thermal and electrical conductivity, it's often used for busbars, wire connectors, and other electrical applications. Copper has a glossy reddish-orange appearance.
Excellent strength to weight ratio, used in aerospace, automotive and medical industries. Titanium is a metal with excellent strength-to-weight ratio, low thermal expansion and high corrosion resistance that is sterilizable and biocompatible.
Tool steel has high hardness and can maintain high hardness and red hardness at high temperatures, as well as high wear resistance and appropriate toughness. Tool steel is generally divided into carbon tool steel, alloy tool steel and high-speed tool steel.
Superalloys have excellent high-temperature strength, good oxidation resistance and hot corrosion resistance, good fatigue properties, fracture toughness and other comprehensive properties, and are mainly used in the aerospace and energy fields.
Brass has strong wear resistance, high strength and hardness, and strong resistance to chemical corrosion. Brass is often used to make wear-resistant parts such as valves and watch movements.
Alloy steel has special properties such as high strength, high toughness, wear resistance, corrosion resistance, low temperature resistance, high temperature resistance, and magnetism.
Engineering plastics have excellent comprehensive properties, such as high rigidity, low creep, high mechanical strength, good heat resistance, and good electrical insulation. They can be used in harsh chemical and physical environments for a long time and can replace metals as engineering structural materials.
Our production services can help you achieve the tightest tolerances required for non-standard custom CNC machined parts.
| CNC Machining Tolerances | Linear dimension range（mm) | ||||||||
| Type | Geometric Characteristics | Symbol | 0.5 – 3 | 3 – 6 | 6 – 30 | 30 – 120 | 120 – 400 | 400 – 1000 | 1000 – 2000 |
| Dimension | Length |  | ± 0.01 | ± 0.02 | ± 0.05 | ± 0.1 | |||
| Diameter |  | 0.006 | 0.01 | 0.015 | 0.02 | —— | —— | ||
| Angle |  | ± 0.03 | ± 0.05 | ± 0.15 | —— | ||||
| Form | Straightness |  | 0.003 | 0.005 | 0.01 | 0.02 | —— | ||
| Flatness |  | 0.001 | 0.003 | 0.01 | 0.03 | 0.05 | 0.15 | ||
| Circularity |  | 0.001 | 0.002 | 0.005 | 0.01 | —— | —— | ||
| Cylindricity |  | 0.003 | 0.005 | 0.01 | 0.05 | —— | —— | ||
| Profile | Profile of a line |  | 0.005 | 0.02 | 0.05 | 0.1 | 0.15 | 0.3 | |
| Profile of a surface |  | 0.01 | 0.02 | 0.05 | 0.1 | 0.15 | 0.3 | ||
| Orientation | Parallelism |  | 0.003 | 0.005 | 0.02 | 0.05 | 0.1 | —— | |
| Perpendicularity |  | 0.003 | 0.005 | 0.01 | 0.05 | 0.1 | —— | ||
| Angularity |  | 0.003 | 0.05 | 0.1 | —— | ||||
| Location | Position |  | 0.01 | 0.02 | 0.05 | 0.1 | 0.2 | ||
| Concentricity |  | 0.003 | 0.005 | 0.01 | 0.05 | —— | —— | ||
| Symmetry |  | 0.01 | 0.02 | 0.05 | 0.1 | —— | |||
| Runout | Circular Runout |  | 0.002 | 0.005 | 0.01 | 0.05 | —— | ||
| Total Runout |  | 0.003 | 0.005 | 0.01 | 0.05 | —— | |||
*Please clearly indicate tolerances for nominal sizes below 0.5mm on your technical drawing.
Improve your part’s performance by selecting high-quality surface finishes that enhance the roughness, hardness, chemical resistance and cosmetic features of your finished component.
We support high-quality surface treatment requirements, covering sandblasting, oxidation, electroplating, electrophoresis, baking paint, chemical conversion coating, passivation, polishing, blackening, QPQ, etc., and provide data such as film thickness, hardness, color, salt spray test, etc. Adhesion report.
Rapidly produce parts in volume through the multidisciplinary architecture of Authoritative Manufacturing Solutions.

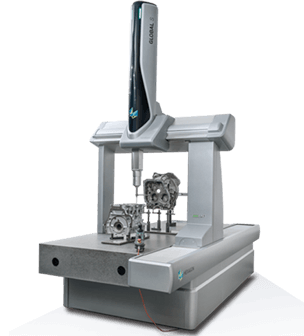

We manufacture your custom parts according to strict manufacturing standards and ensure all parts and processes adhere to the Xavier Standard. A thorough verification of these requirements is included in our inspection report that we ship with every order.
Dynamically pursue integration, continue process improvement and quality improvement, and integrate quality and service into customer action projects.
