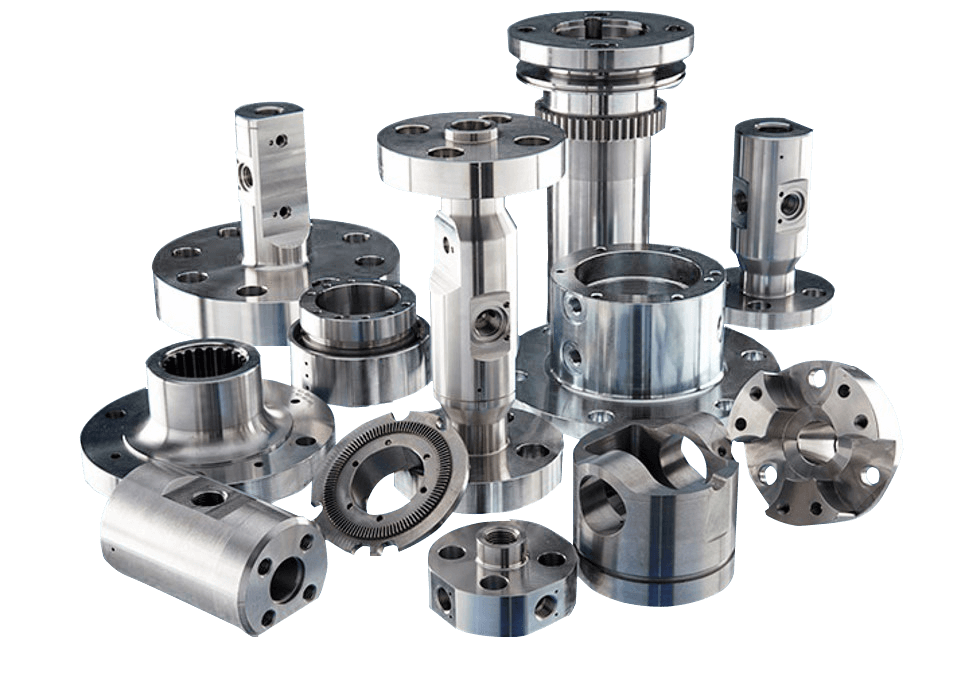

CNC turning
CNC turning screw
15 +

Years Experience

Trusted by many companies

About Xavier

We have high standards for CNC turning

We manufacture your custom parts according to strict manufacturing standards and ensure all parts and processes adhere to the Xavier Standard. A thorough verification of these requirements is included in our inspection report that we ship with every order.

OEM&ODM

Provide OEM&ODM orders with different MOQ requirements

Explore More

Xavier Cloud

Support RFQ and PO online management review.

Explore More

Online Turning

Diversified
Turning Services

According to the structural characteristics and MOQ characteristics of the parts, select the turning equipment that best suits your needs for production and manufacturing. We have 1-0+ CNC lathes with different specifications and functions.

4 axis cnc turning

The 4-axis turret CNC turning tool has a small overrun, and supports axial end face and longitudinal simple geometric structure milling.

CNC turning and milling

CNC milling and turning is the only processing equipment that can clamp all cutting steps at one time.

Swiss Turning Machining

Swiss turning is suitable for machining micro precision parts. It originated from the production of precision small parts in the industry.

CNC Tool Lathe Machining

The CNC lathe has high tool change efficiency, fast cutting speed and small tool capacity.

Turning table

Maximum part size
for CNC turning

Part size limitationsMetric unitsImperial units
Maximum part diameter825 mm32.48 in
Maximum part length1500 mm59 in
Maximum swing over the carriage430 mm16.93 in
Maximum spindle through-hole65 mm2.56 in

The maximum speed is 6000RPM, the maximum load-bearing capacity is 2T, and the minimum compensation parameter is 0.0001mm.

materials

Available materials for CNC Turning

We can provide instant quotes for over 50 types of metal and plastic machining, suitable for CNC machining of a wide variety of metals, for applications in a variety of industries. Ideal for one-off prototypes and end-use custom parts.

 Aluminum

Aluminum

High machinability and ductility, good strength-to-weight ratio. Aluminum alloys have good strength-to-weight ratio, high thermal and electrical conductivity, low density and natural corrosion resistance. Can be anodized.

Aluminum

 Aluminum
 Aluminum

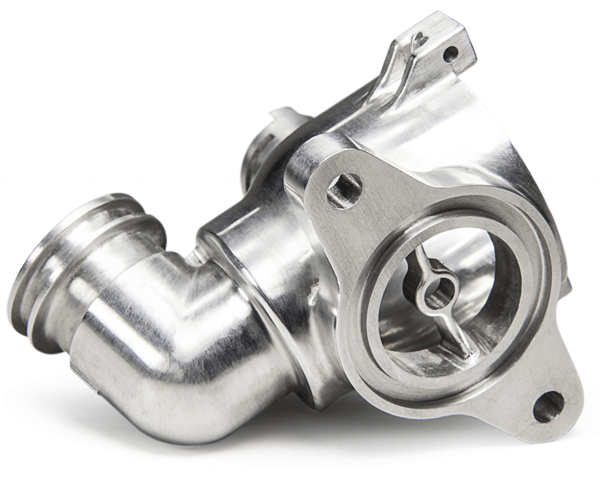

Stainless steel

Stainless steel

High tensile strength, corrosion and temperature resistant. Stainless steel alloys have high strength, ductility, wear and corrosion resistance. They can be easily welded, machined and polished.

Stainless steel

Stainless steel
Stainless steel
Mild steel

Mild steel

High machinability and weldability, high stiffness. Mild steels are low-carbon metal alloys offering good mechanical properties, machinability and weldability at low cost. Can be carburized to increased hardness.

Mild steel

Mild steel
Mild steel

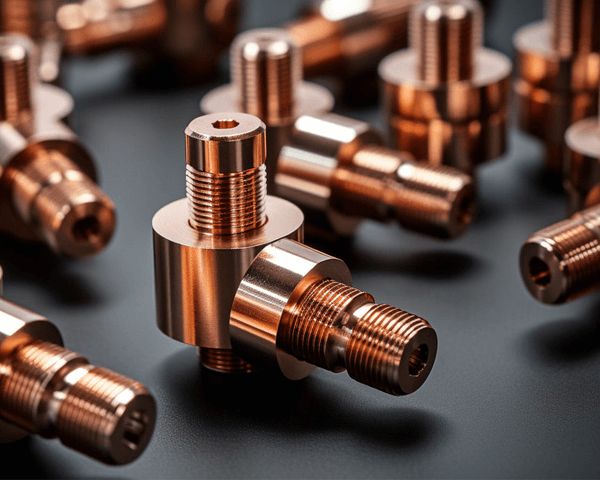

 Copper

Copper

Excellent thermal and electrical conductivity Copper offers excellent thermal and electrical conductivity, it's often used for busbars, wire connectors, and other electrical applications. Copper has a glossy reddish-orange appearance.

Copper

 Copper
 Copper
 Titanium

Titanium

Excellent strength to weight ratio, used in aerospace, automotive and medical industries. Titanium is a metal with excellent strength-to-weight ratio, low thermal expansion and high corrosion resistance that is sterilizable and biocompatible.

Titanium

 Titanium
 Titanium

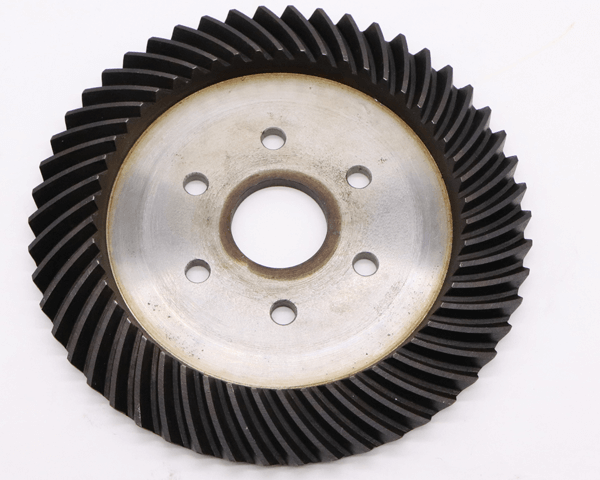

Tool steel

Tool steel

Tool steel has high hardness and can maintain high hardness and red hardness at high temperatures, as well as high wear resistance and appropriate toughness. Tool steel is generally divided into carbon tool steel, alloy tool steel and high-speed tool steel.

Tool steel

Tool steel
Tool steel

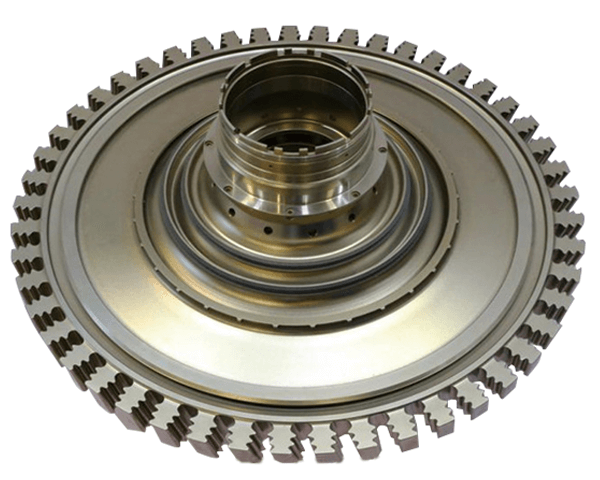

Superalloy

Superalloy

Superalloys have excellent high-temperature strength, good oxidation resistance and hot corrosion resistance, good fatigue properties, fracture toughness and other comprehensive properties, and are mainly used in the aerospace and energy fields.

Superalloy

Superalloy
Superalloy

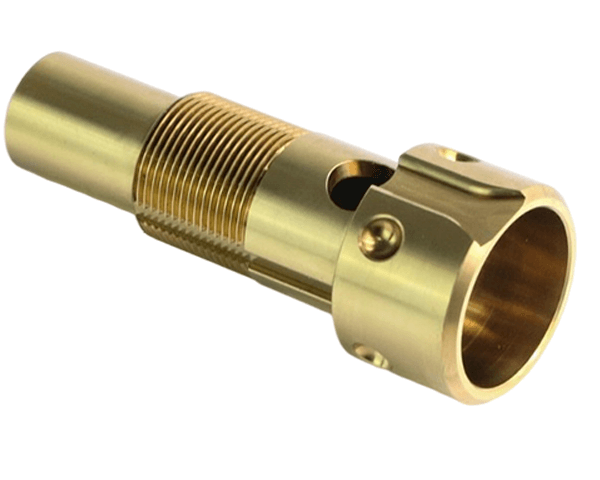

Brass

Brass

Brass has strong wear resistance, high strength and hardness, and strong resistance to chemical corrosion. Brass is often used to make wear-resistant parts such as valves and watch movements.

Brass

Brass
Brass

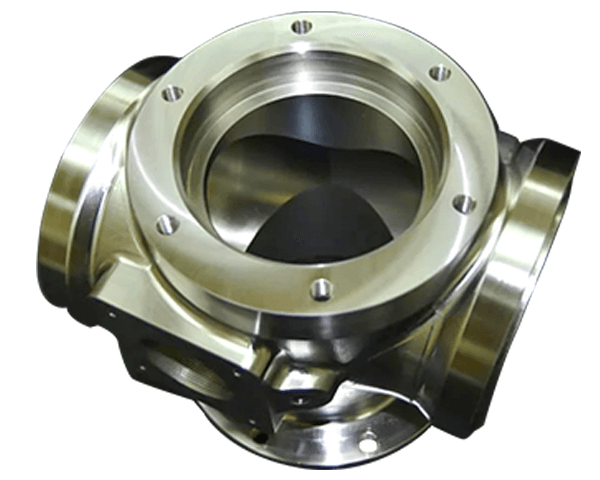

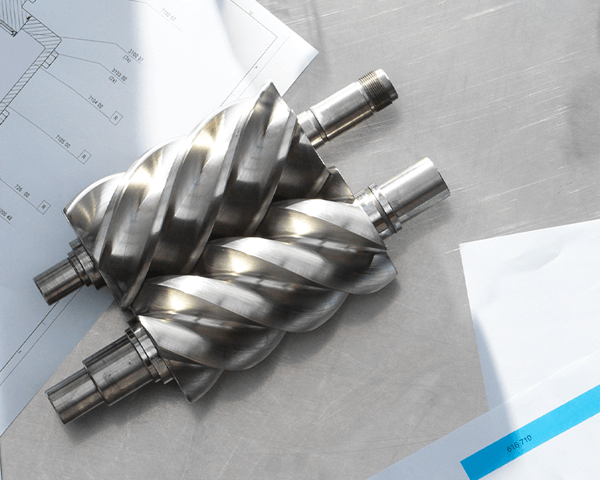

Alloy steel

Alloy steel

Alloy steel has special properties such as high strength, high toughness, wear resistance, corrosion resistance, low temperature resistance, high temperature resistance, and magnetism.

Alloy steel

Alloy steel
Alloy steel

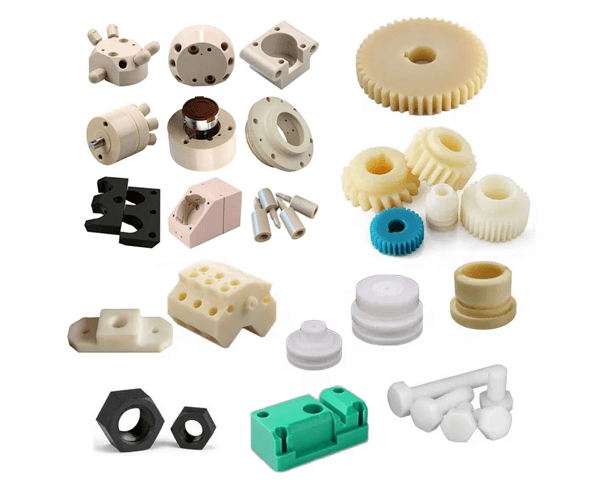

Plastics

Plastics

Engineering plastics have excellent comprehensive properties, such as high rigidity, low creep, high mechanical strength, good heat resistance, and good electrical insulation. They can be used in harsh chemical and physical environments for a long time and can replace metals as engineering structural materials.

Plastics

Plastics
Plastics

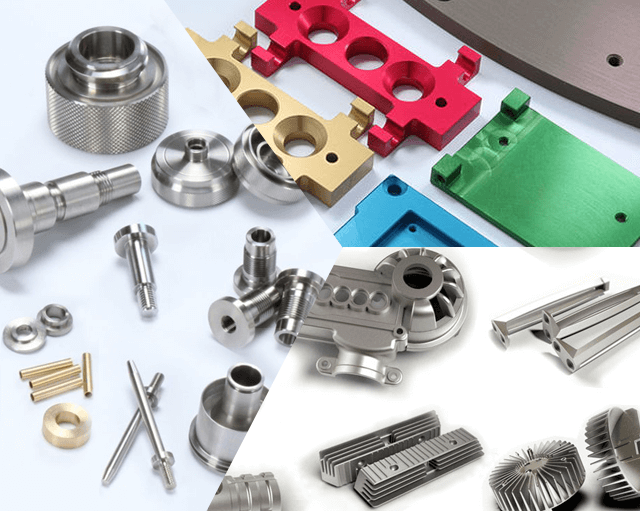

Surface treatment parts
  • Plating

  • Anodizing

  • Spraying

CNC turning surface finishes

Advantage

Improve your part’s performance by selecting high-quality surface finishes that enhance the roughness, hardness, chemical resistance and cosmetic features of your finished component.

Supporting services

We support high-quality surface treatment requirements, covering sandblasting, oxidation, electroplating, electrophoresis, baking paint, chemical conversion coating, passivation, polishing, blackening, QBQ, etc., and provide data such as film thickness, hardness, color, salt spray test, etc. Adhesion report.

Service

CNC turning tolerances

We follow ISO 2768 standards for CNC machining.

Limits for nominal sizePlastics (ISO 2768- f)Metals (ISO 2768- f)
0.5mm* to 3mm±0.05mm±0.05mm
Over 3mm to 6mm±0.05mm±0.05mm
Over 6mm to 30mm±0.1mm±0.1mm
Over 30mm to 120mm±0.15mm±0.15mm
Over 120mm to 400mm±0.2mm±0.2mm
Over 400mm to 1000mm±0.3mm±0.3mm
Over 1000mm to 2000mm±0.5mm±0.5mm
Over 2000mm to 4000mm±1mm

*Please clearly indicate tolerances for nominal sizes below 0.5mm on your technical drawing.

Full closed-loop quality management

Consult or call : (+86) 0755-8667-0966

Demand analysis

Clarify the customer's project needs and create RFQ and PO. Customers can check the progress of all projects and individual parts at any time, and check the real-time production status of PO online.

Explore More

Process Control

Xavier adopts fully closed-loop process management, and MES automatically arranges production when there are differences in measurement data to avoid delivery delays.

Explore More

Supply Chain

Our supply chain must obtain the ISO9001 quality system certificate, and review the quality planning of the "Quality Manual", and sign a supply chain agreement after the review.

Explore More

Quality & Delivery

Online real-time query of measurement data, PO order traceability, material report, 3DCMM, surface treatment report, COC, packing list.

Explore More

Industry experience

We have professional R&D departments in the fields of optoelectronics, aerospace, energy, intelligent equipment and other fields.

Explore More

Project management

According to the technical characteristics of parts processing in different industries, match different needs and formulate the best solution.

Explore More

CNC turning design guidelines

Check the recommended and technically feasible values for the most common features of parts produced with precision CNC turning.

FeatureRecommended sizeFeasible size
Min. feature sizeØ 2.5 mmØ 0.50 mm
Internal edgesR 8 mmR 0.25 mm
Minimum wall thickness0.8 mm (for metals) 1.5 mm (for plastics)0.5 mm (for metals) 1.0 mm (for plastics)
HolesDiameter: standard drill bit sizes
Depth: 4 x diameter
Diameter: Ø 0.5 Depth: 10 x diameter
ThreadsSize: M6 or larger Length: 3 x diameterSize: M2

We have high standards for CNC turning

We manufacture your custom parts according to strict manufacturing standards and ensure all parts and processes adhere to the Xavier Standard. A thorough verification of these requirements is included in our inspection report that we ship with every order.

  • Standard 1
    PO consistent

    We ensure that every part after machining is as specified in the PO as customer requirements.

  • Standard 2
    Quality check

    Prior to MP shipment to ensure that each part meets order specifications and Xavier standards.

  • Standard 3
    Require consistent

    Ensure conformance of parts and any required documentation prior to dispatching the order.
